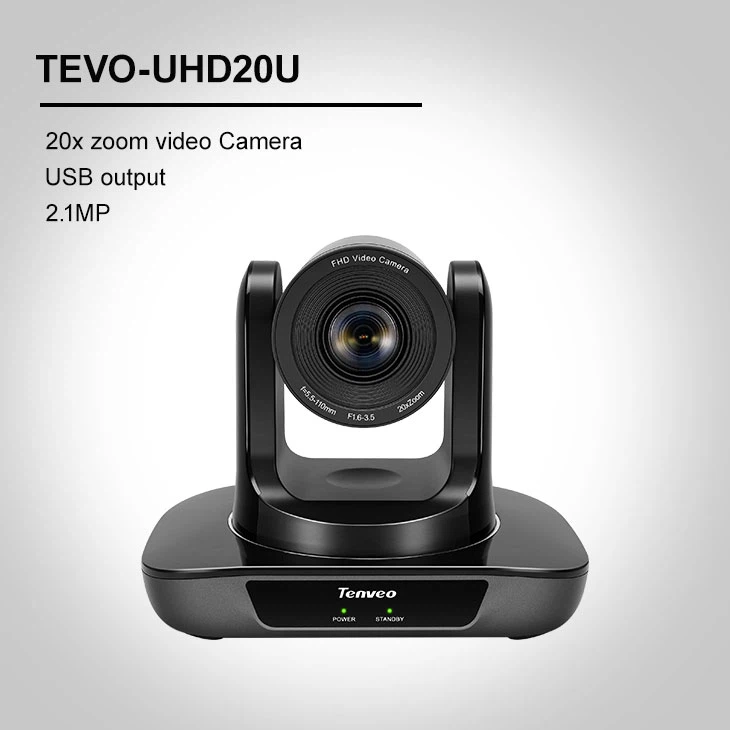

Hd Cam 20x Zoom Desk Hd-sdi PTZ Camera
USB2.0 video output
1/3" Exmor CMOS
2.1 mega pixel
HD1080P
20X optical zoom
Pan: 0-340° Tilt :0°~120°
Support RS-232, RS-485
With IR remote control
- Livrezon rapid
- Asirans Kalite
- Sèvis Kliyan 24/7
Pwodwi Entwodiksyon
20x Optical zoom conference camera
USB Video Output
Pan Tilt Zoom Web Camera
Plug & Play USB2.0 Connectivity
Crystal clear HD1080P image quality
Accurate,smooth and silent PTZ Movement
Preset: 10 via IR remote setting (255 via RS232)
Wide field of view with no video distortion
1/3 inch high quality, 2.1MP (16:9) CMOS sensor
Superior quality with Full Glass Lens Material
Support ceiling mount, wall mount and tripod mount (Reverse mountable)
2D and 3D NR for best video quality in different lighting conditions
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
Compatible with most leading video conferencing software and platform
Specification for 3x,10x,20x zoom :
| Model | UHD4K | UHD3U | UHD102U | UHD202U |
| Sensor | 1/2.8''SONY CMOS | 1/2.9″HD color CMOS | ||
| Effective pixel | 8.29mega pixel | 2.1 mega pixel | ||
| Video signals | 4K-30/25,2K-30/25,1080p-30/25 | 1080p-30/25, 720p-30/25 | ||
| Zoom | 5x digital zoom | 3x optical zoom | 10x optical zoom | 20x optical zoom |
| Lens | f=2.2mm | f=3.35-10.05mm | f=4.9-47.04mm | f=5.85~93.6mm |
| Aperture | F1.8 | F1.7～F3.0 | F2.36~2.4 | F1.8～F3.9 |
| Horizontal angle | 107° | 99.6°(W)-30.6°(T) | 54.8°(W)-5.8°(T) | 55.4°(W)-3.55°(T) |
| Vertial angle | 71° | 53.0°(W)-17.2°(T) | 41.2°(W)-4.38°(T) | 31.6°(W)-2.00°(T) |
| Diagonal angle | 116° | 129.2°(W)-37.6°(T) | 67.6°(W)-7.15°(T) | 62.6°(W)-4.05°(T) |
| Video output | USB 2.0 | |||
| Video encoding format | MJPEG, YUY2 | MJPEG/YUY2/H.264 | ||
| Video resolution | 4K(3840*2160) etc | 1080P (1920 *1080) etc | ||
| Siginal standard | NTSC/PAL | |||
| Preset position | User can set up to 64 presets (IR remote 10 presets) | |||
| Control terminal | RS-232,RS485 | |||
| Shutter | 1/30s～1/10000s, auto | |||
| Baud rate | 38400/9600bps | |||
| Control protocol | VISCA, PELCO-D, PELCO-P(RS-232, RS485) | |||
| USB protocol | UVC1.1 | |||
| Minimal Illumination | 0.1Lux | |||
| SNR | ≥50dB | |||
| Horizontal rotation | 350°（±175°）0.1°/s～100°/s | |||
| Vertical rotation | 180°（±90°）0.1°/s～80°s | |||
| Power supply | DC 12V/2A | |||
| Power consumption | 12W | |||
| Work temperature | 0°~+50° | |||
| Work humidity | 0~95% RH | |||
| Product size | 212*160*172mm/260*217*197mm (before / after packing) | |||
| Product weight | 1.25kg/2.05kg(net / gross weight) | |||
